Android [ Java, Kotlin ]
안드로이드 프로그래밍 과제(Java) - Radio버튼 & AlertDialog
Moonsu99
2023. 11. 22. 13:24
환경
- OS - Mac OS 13.5.2
- Tools - Android Studio Iguana | 2023.2.1 Canary 5
- Language - Java
- android version - 12
- tartgetSDK - 33
- minSDK - 28
조건

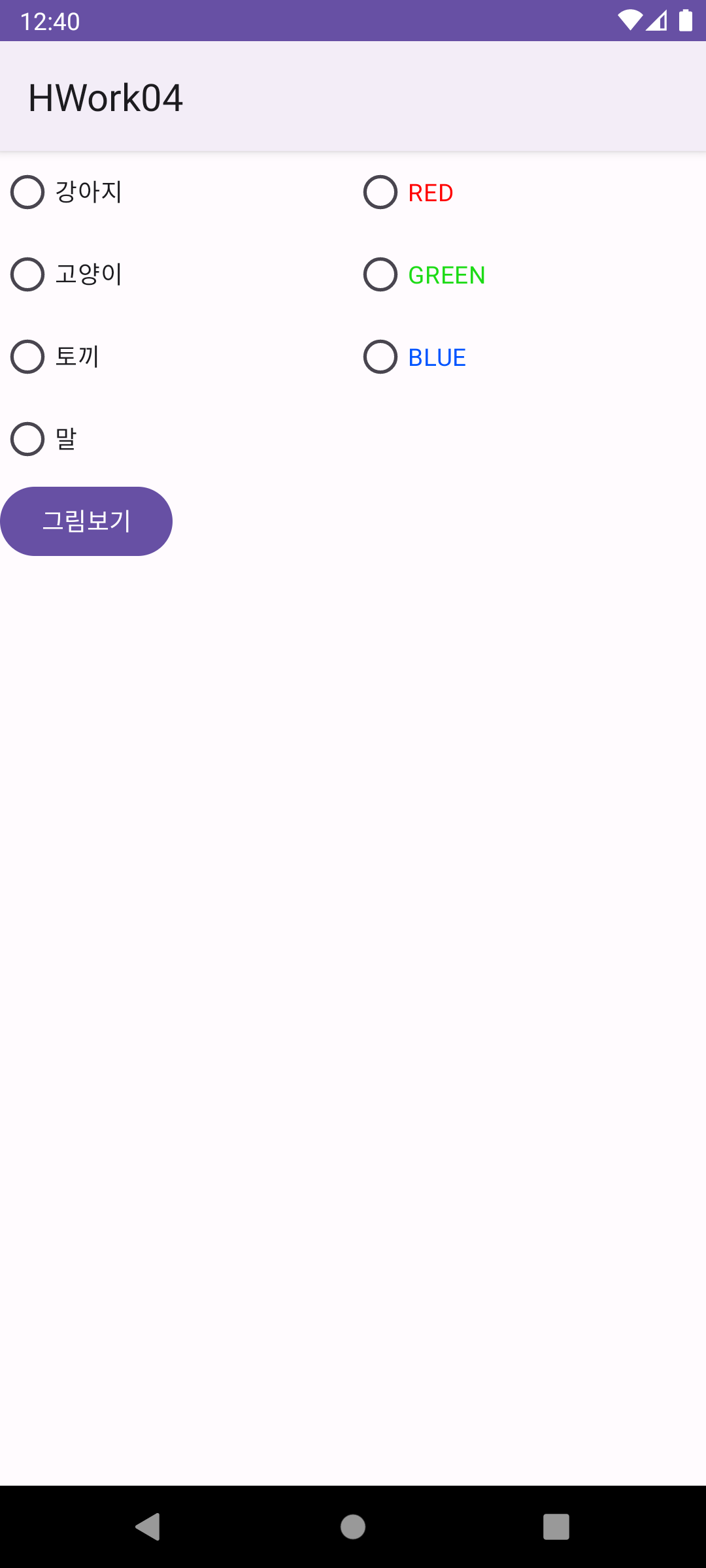

1. 동물과 색상을 각각 선택하는 두 그룹의 RadioButton을 그림1과 같이 배치한다.
2. 그림2와 같이 RadioButton을 선택하고 “그림보기” Button을 클릭하면 그림3과 같이 AlertDialog가 표시되는데, 선택한 동물의 사진이 표시되고 그 앞에 동물 이름이 선택한 색상으로 겹쳐 표시된다.
3. 제목 부분에도 동물 이름이 표시된다.
4. 그림4는 “고양이”와 “RED”를 선택한 경우의 화면이다. “닫기” Button을 누르면 RadioButton이 선택이 해제되고 그림1로 돌아간다.
힌트
1. 화면은 수직 및 수평방향 LinearLayout을 중첩하여 구성할 수 있다.
2. 대화상자에서 그림과 텍스트를 겹쳐 표시하기 위해 FrameLayout을 사용하면 된다.
3. RadioButton의 선택을 해제하기 위해서는 RadioGroup에 clearCheck() 메소드를 사용하면 된다.
풀이
activity_main.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="horizontal">
<RadioGroup
android:id="@+id/animalRadioGroup"
android:layout_weight="1"
android:layout_width="0dp"
android:layout_height="wrap_content">
<RadioButton
android:id="@+id/dogRadioButton"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="강아지" />
<RadioButton
android:id="@+id/catRadioButton"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="고양이" />
<RadioButton
android:id="@+id/rabbitRadioButton"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="토끼" />
<RadioButton
android:id="@+id/horseRadioButton"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="말" />
</RadioGroup>
<RadioGroup
android:id="@+id/colorRadioGroup"
android:layout_weight="1"
android:layout_width="0dp"
android:layout_height="wrap_content">
<RadioButton
android:id="@+id/redRadioButton"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:textColor="#FF0000"
android:text="RED" />
<RadioButton
android:id="@+id/greenRadioButton"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:textColor="#1DDB16"
android:text="GREEN" />
<RadioButton
android:id="@+id/blueRadioButton"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:textColor="#0054FF"
android:text="BLUE" />
</RadioGroup>
</LinearLayout>
<Button
android:id="@+id/showPictureButton"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="그림보기" />
</LinearLayout>
alertdialog.xml
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:padding="30dp"
android:layout_height="400dp">
<ImageView
android:id="@+id/animalImageView"
android:layout_width="match_parent"
android:layout_height="330dp" />
<TextView
android:id="@+id/animalNameTextView"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="강아지"
android:textColor="#FF0000"
android:textSize="50sp"
android:gravity="center"
android:layout_gravity="bottom"
android:padding="16dp"
/>
</FrameLayout>
MainActivity.java
public class MainActivity extends AppCompatActivity {
private RadioGroup animalRadioGroup;
private RadioGroup colorRadioGroup;
private Button showPictureButton;
private TextView animalNameTextView;
private ImageView animalImageView;
private String selectedAnimalText;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
setTitle("HWork04");
animalRadioGroup = findViewById(R.id.animalRadioGroup);
colorRadioGroup = findViewById(R.id.colorRadioGroup);
showPictureButton = findViewById(R.id.showPictureButton);
showPictureButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
int selectedAnimalId = animalRadioGroup.getCheckedRadioButtonId();
int selectedColorId = colorRadioGroup.getCheckedRadioButtonId();
if (selectedAnimalId != -1 && selectedColorId != -1) {
RadioButton selectedAnimalRadioButton = findViewById(selectedAnimalId);
RadioButton selectedColorRadioButton = findViewById(selectedColorId);
String animalName = selectedAnimalRadioButton.getText().toString();
String selectedColor = selectedColorRadioButton.getText().toString();
showCustomAlertDialog(animalName, selectedColor);
}
}
});
}
private void showCustomAlertDialog(String animalName, String selectedColor) {
AlertDialog.Builder builder = new AlertDialog.Builder(this);
LayoutInflater inflater = getLayoutInflater();
View dialogView = inflater.inflate(R.layout.alertdialog, null);
builder.setView(dialogView);
animalImageView = dialogView.findViewById(R.id.animalImageView);
if (animalName.equals("강아지")) {
animalImageView.setImageResource(R.drawable.dog);
} else if (animalName.equals("고양이")) {
animalImageView.setImageResource(R.drawable.cat);
} else if (animalName.equals("토끼")) {
animalImageView.setImageResource(R.drawable.rabbit);
} else if (animalName.equals("말")) {
animalImageView.setImageResource(R.drawable.horse);
}
animalNameTextView = dialogView.findViewById(R.id.animalNameTextView);
animalNameTextView.setText(animalName);
animalNameTextView.setTextColor(Color.parseColor(selectedColor));
selectedAnimalText = "선택한 동물 : " + animalName;
builder.setTitle(selectedAnimalText);
builder.setPositiveButton("닫기", new DialogInterface.OnClickListener() {
@Override
public void onClick(DialogInterface dialog, int which) {
dialog.dismiss();
animalRadioGroup.clearCheck();
colorRadioGroup.clearCheck();
}
});
builder.show();
}
}
